Power Passenger seat upgrade

First off my Camaro is a 2011 V6 2LT Convertible. It came with heated leather and has the usual side impact air bag, power recline, and manual fore and aft adjustment.

I used all factory items purchased thru the dealership at which I work.

I will give part number then description. Items I purchased are...

#13581767 Seat frame
#22821284 SIR Bracket
#15889524 Knob
#22780755 Cover
#22780747 Harness
#25974715 Switch
#13272975 Bolt (you will only need this if yours break or strip like mine did... 4 total)

First I had to put a SPAC case in order to get the frame as it went directly on Back Order.


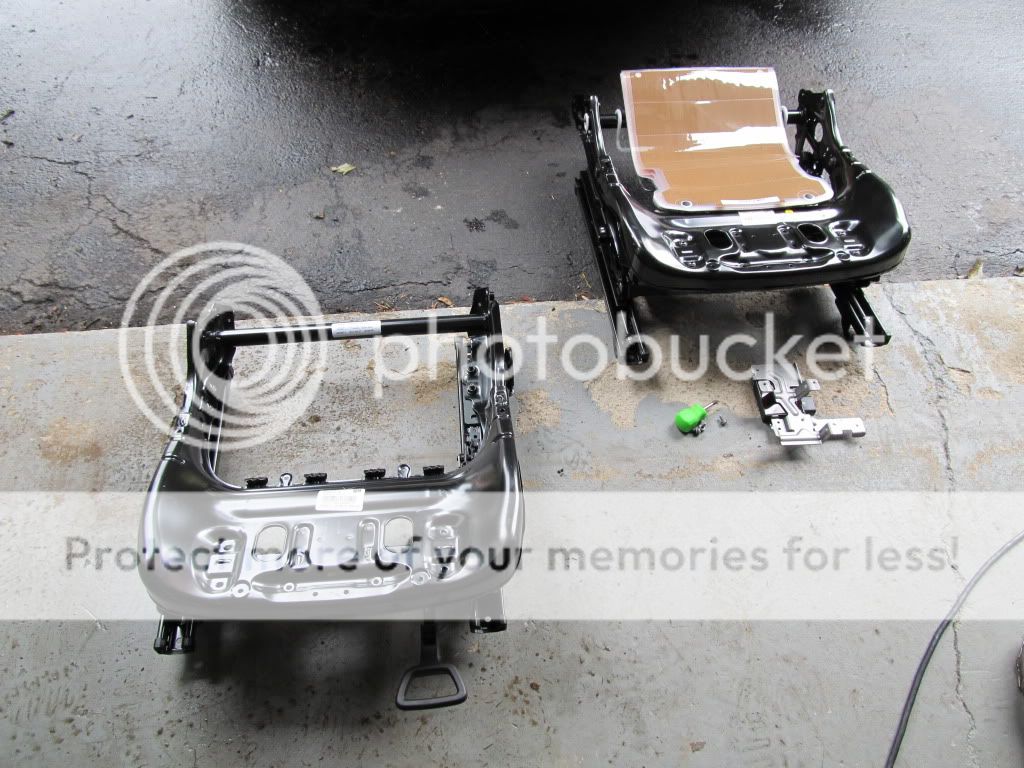

As you can see it comes with all the motors.


ctsvowner is offline
Sponsored Links
Advertisement

post #2 of 31 Old 09-17-2011, 08:37 AM Thread Starter
Junior Member

Join Date: Aug 2011
Location: NJ
Posts: 62

Garage
In order to remove the seat slide it forward and remove the two Torx bolts. Then move the entire seat rearward and tilt up to gain access to the wiring harness. Slide the end of the harness clip towards the passenger side and pull back gently. You will be surprised how easy this is when done properly.




I raised to roof and lifted the seat out. Be careful not to let it scratch the sill plate.
ctsvowner is offline
post #3 of 31 Old 09-17-2011, 08:46 AM Thread Starter
Junior Member

Join Date: Aug 2011
Location: NJ
Posts: 62

Garage
I took a before picture to reference where the wires went. (turned out it did not matter since the new harness is routed differently.


One of my recliner bolts stripped so I drilled it out.


The new seat track weighs 12.6 pounds more. You WILL notice the difference.
ctsvowner is offline
post #4 of 31 Old 09-17-2011, 08:51 AM Thread Starter
Junior Member

Join Date: Aug 2011
Location: NJ
Posts: 62

Garage
There are some differences in the tracks where the side trim mounts.



Note heating element is already swapped over



ctsvowner is offline
post #5 of 31 Old 09-17-2011, 09:08 AM Thread Starter
Junior Member

Join Date: Aug 2011
Location: NJ
Posts: 62

Garage
Don't forget the bracket for the module.



You will need a new one. They are different on power versus non power


These are the items you will have left over.



Obviously there is more work than shown in these few pictures with patience you can do this at home.

The very rare picture of me lol


Almost done just need the side trim, check out the height difference. All for a happy passenger.
ctsvowner is offline
post #6 of 31 Old 09-18-2011, 04:51 AM
Premium Member

Guapo's Avatar

Join Date: May 2009
Location: Crestview Fl
Posts: 2,485

Garage
Keep us posted, and what would be the total cost. Is there a diffrent harness for those of us that dont have heated seats.

2013 LT2/RS, Crystal Red Metallic, TAZ Jr., NAV, HUD, Backup Camera.
2015 Harley Street Glide, Superior Blue.
2012 Big Horn, RAM, Crew Cab, SLT, Dark Cherry Red Pearl
1998 Honda Accord 2d, daily driver.
Guapo is offline
post #7 of 31 Old 09-18-2011, 08:12 AM
Support MC & Troops

hotrodhoodrat's Avatar

Join Date: Oct 2010
Location: Idaho
Posts: 11,736

Thx for sharing

Getting way pumped up ..LOL(Never giving up !)

The all new Convertible (Born 1/11/11) !, Welcome to the Fleet !
SHADOW 2013 GBA 2SS/RS A6 Vert (2/13/14)
"FROST 2011 SIM LT1 A6 " FIRST VERT MOTM AUGUST 2013
*PROTESTING GM*
"GIVE ME MY13'IBM ZL1 vert GM!"
hotrodhoodrat is offline
post #8 of 31 Old 09-18-2011, 06:24 PM Thread Starter
Junior Member

Join Date: Aug 2011
Location: NJ
Posts: 62

Garage
Yes there is a different harness for the non heated seats. I'll look that up later this week.

The regular list price on all parts is $754.13

The dealership I work at is not a supporting vendor. The best thing is finding a supporting vendor close to your home.

If you live near where I work 07006 send me a PM and I will help you buy and install.

Dave
ctsvowner is offline
post #9 of 31 Old 09-18-2011, 07:03 PM
Moderator

USA1Camaro's Avatar

Join Date: Dec 2006
Location: Indiana
Posts: 5,227

Great write up and pics. Thanks!
USA1Camaro is offline
post #10 of 31 Old 09-18-2011, 08:24 PM
Senior Member

mphoob's Avatar

Join Date: Nov 2008
Location: Florence, KY
Posts: 725

ctsvowner, you are my moderncamaro.com member of the month nominee, that is awesome!

At last--Dream HAS BECOME Reality....
mphoob is offline
