Just received and installed my cold air inductions CAI and figured I might as well add a little how-to :)

Step 1, unwrap!



Step 2, Pop the trunk, Remove the spare tire (if applicable), disconnect negative battery terminal.



Step 3, Remove engine cover, un-clip the MAF sensor

Step 4, Un-clamp the hose on the TB, pull the vacuum hose off the stock intake, remove the 2 10MM bolts holding the stock intake (using a deep socket) and just lift and remove!





Step 5, Remove airbox lid, and place box in position and bolt down using 1 of the 10MM bolts you removed in step 4.

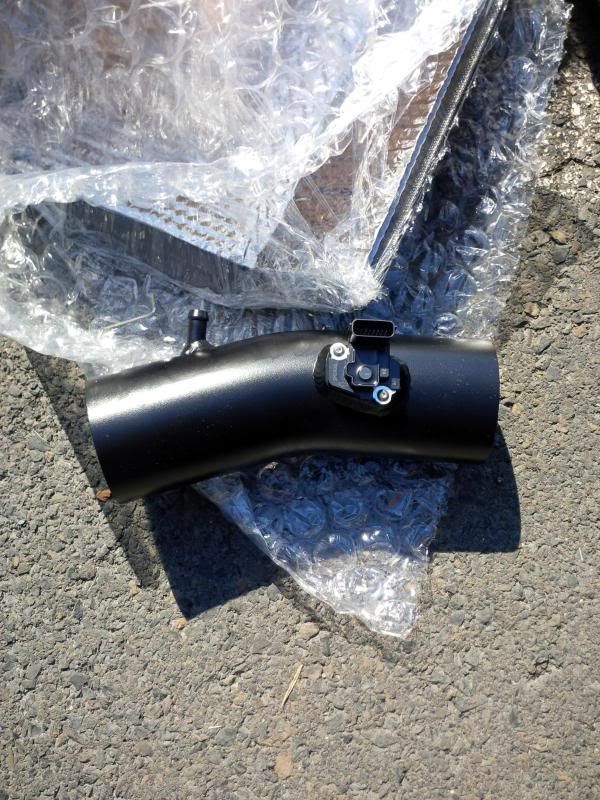

Step 6, Put the MAF into the new ceramic coated tube.



Now you just need to put the system together. Put the Ceramic pipe into the filter and tighten. Add the hose provided for the PCV system, connect the elbow to the ceramic pipe. Add the lid and clamp everything down!



Then just throw the engine cover back on, and enjoy!



·
Registered
Joined
·
222 Posts
Discussion Starter · #3 ·
Throttle response feels the same. Noise is phenomenal. I almost don't even NEED to do the axle-back anymore. But I probably still will for the looks.

As my daily driver, I don't want it to be loud all of the time, so it's nice to have the growl on heavy acceleration again.


·
Registered
Joined
·
1,285 Posts
Thanks ChibiBlackSheep. :thumbsup: How do you like it?


·
Registered
Joined
·
222 Posts
Discussion Starter · #6 ·
I like it a lot. I've been to many car shows looking at all of the different kits. I just love the fit and finish of this one the most.

If I wasn't putting a CSC in place of my airbox on the Monte this week, I would have purchased one of these for that car too, after seeing this one.


·
Support MC & Troops
Joined
·
11,807 Posts

·
Registered
Joined
·
1 Posts
Great write up. Thank you for taking the time. So it didn't require any kind of tune change to get the results you wanted? I thought I read that CAI require a tune change.


·
Registered
Joined
·
222 Posts
Discussion Starter · #10 ·
No tune required for this CAI.


·
Support MC & Troops
Joined
·
11,807 Posts

·
Registered
Joined
·
222 Posts
Discussion Starter · #12 ·
Although I do own HPTuners... just waiting for that warranty to run out :lol:
