Supercharged my vert

7018 Views 29 Replies 13 Participants Last post by SIXJAK, Jan 28, 2014

Toddb

Discussion Starter · Oct 7, 2012

I installed a whipple supercharger on my convertible in my garage last week and thought I would share my journey with you all. My wife will be helping me with the install.OK to start my car has 2" ARH headers and I removed the cats and put in straight pipes.I have a CAI intake and Corsa exhaust. The car is currently tuned by JRE and will be re-tuned by Ted after I install my Whipple. I will be using a ZR 1 Bar Map Sensor,ID 850 injectors,ZR1 spark plugs,MSD Fuel pump voltage booster and a 3.875 pulley. Car was purchased from Camaro Scotty.

See less See more

Save

1 - 16 of 30 Posts

Toddb

Discussion Starter · #2 · Oct 7, 2012

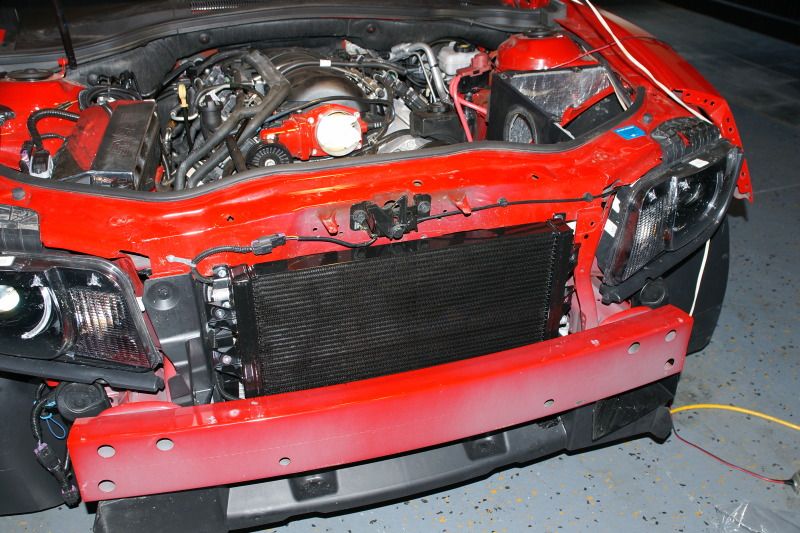

On my convertible there was a brace going across the front of the radiator. I removed to allow room for the inter-cooler. I will see if it fits after I install the inter cooler.

If you have the JDP color changing halos you will have to move the control box from behind the bumper. I moved it to behind the bumper on the right side

See less See more

Save

Toddb

Discussion Starter · #3 · Oct 7, 2012

Here is my whipple and my helper.

See less See more

Save

Toddb

Discussion Starter · #4 · Oct 7, 2012

There is a tight spot where both hoses go threw on the right side. I took a large pair of channel locks and bent the tin over a little bit. I makes it fit threw much better. I touched it up with a can of touch up paint

See less See more

Save

Toddb

Discussion Starter · #5 · Oct 7, 2012

Ok got everything off. Everything was explained very well in the Whipple kit. Time to put the supercharger on.

See less See more

Save

Toddb

Discussion Starter · #6 · Oct 7, 2012

I got the supercharger in and put roto fab covers on it.The covers fit well and look nice. I took my first ride tonight with my wife. After i drove around for a while to warm it up. I shifted to first let the clutch out and when i hit 10 mph i punched it . It immediately roasted the tires ,at 5500 I shifted to second and hit the gas and it roasted the tires again then i let off at 5500 enough till after i data log. My wife turns to me and yells next time warn me when your going to do that so I can put my head against the headrest. Third gear pulls like a freight train. All total it took my about 20 hrs. Not to bad if you can follow directions and have the tools. Boost went up to 9 psi. AF was about 11 at 5500 rpms. Time to data log.

See less See more

Save

Toddb

Discussion Starter · #7 · Oct 7, 2012

Here are some final pictures.Roto fab covers fit great and look good. I also painted the cross brace black.

See less See more

Save

Toddb

Discussion Starter · #10 · Oct 8, 2012

tazz3 said:
Great job installing the supercharger...

Thank you. It was not to bad doing it my self. Felt good when I turned the key and it started right up.

Save

Toddb

Discussion Starter · #11 · Oct 8, 2012

NightmareBreed said:
very cool.
your car is gorgeous. the grille and color combo really work well together.

what HP/TQ numbers are you expecting?

Thanks I have been working on it since I got it. I also added all custom speakers 2 more 12" subs (besides the 10" in the rear seat) 3 amps to power it. One amp for the component speakers (150ch x 4) then a 1000 watt amp for the custom 10" I built into the factory spot and a 3500 watt amp for 2 more 12" subs that fit under the top when its down. 3 batterys and a 275 amp DC Power alternator to power it all.

Save

Toddb

Discussion Starter · #12 · Oct 8, 2012

NightmareBreed said:
very cool.
your car is gorgeous. the grille and color combo really work well together.

what HP/TQ numbers are you expecting?

On 91 octane about 585 RWHP or around 700 engine HP. I am running just under 10 psi of boost at WOT.:thumbsup:

Save

Toddb

Discussion Starter · #14 · Oct 10, 2012

Envy said:
Great job Todd! [URL="

[/URL]

Thanks . It was not to bad since I am a do it your self guy.:thumbsup:

Save

Toddb

Discussion Starter · #19 · Oct 11, 2012

45thAnniversary2SS said:
Sick ride man!!! Looks great. Is this your first supercharged car? If so, is it worth it in your opinion? I keep talking myself out of it.

Lets just say! Getting BLOWN is the best.:thumbsup: Really makes this car fun. Just hit the gas and the tires smoke in first or second. Best $8000.00 I ever spent. Only down side is buying tires cause a cant stop my self.:lol:

Save

Toddb

Discussion Starter · #20 · Oct 11, 2012

hotrodhoodrat said:
Toddb..
Yo wife looks ready to get the job done... awesome wife !!
I bet ya two heart's jumps out when you hit the throttle
Luv the chrome/Polished housing and the covers... looking killer bro :roxor:
Another Sweet N' bad aSS Vert !! :5go::5go:

Thanks. Ya I'm a old school guy. I love chrome. You need to see my custom stereo and interior. All done by me in the last year and a half.

Save

Toddb

Discussion Starter · #23 · Oct 13, 2012

el ess X said:
So you're frying tires and everything BEFORE the tune? You may break something after the tune...

Nice job!

No i have it tuned already. Did that before any full throttle driving. Ted from JRE tuned it for me. I data logged and then sent him the files.:thumbsup:

Save

Toddb

Discussion Starter · #24 · Oct 13, 2012

45thAnniversary2SS said:
can't argue with you there. I only have 11,500 miles on mine so wanted to drive it a bit before going blown. Figured I'd appreciate the power more then not to mention wanted to hold off for a bit just to make sure since warranty will go with it.

Anyways, congrats man.

I have 9000 miles on mine but its not my daily driver. When your ready go for it. If you drive to central Wi I will help you install it.:thumbsup:

Save

Toddb

Discussion Starter · #27 · Dec 23, 2013

Time to add a cam. Looking forward to 650 rwhp.

Save

1 - 16 of 30 Posts
